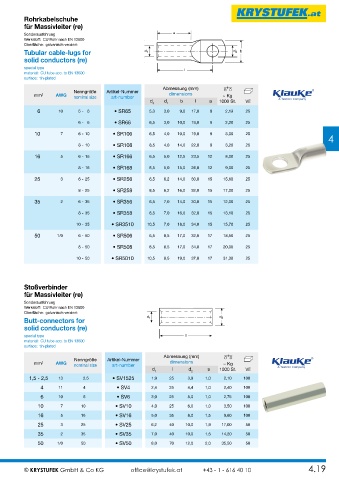

P. 59
Rohrkabelschuhe
für Massivleiter (re)
Sonderausführung a
Werkstoff: CU Rohr nach EN 13600
Oberfläche: galvanisch verzinnt
Tubular cable-lugs for d 1 d 3 b
solid conductors (re)
special type l
material: CU tube acc. to EN 13600
surface: tin-plated
Abmessung (mm)
Nenngröße Artikel-Nummer
mm 2 AWG nominal size art-number dimensions ~ Kg
d d b l a 1000 St. VE
3 1
6 10 5 - 6 • SR65 5,3 3,0 9,0 17,0 8 2,13 25
6 - 6 • SR66 6,5 3,0 10,0 19,0 8 2,20 25
10 7 6 - 10 • SR106 6,5 4,0 10,0 19,0 9 3,00 25
4
8 - 10 • SR108 8,5 4,0 14,0 22,0 9 3,20 25
16 5 6 - 16 • SR166 6,5 5,0 12,5 23,5 12 8,00 25
8 - 16 • SR168 8,5 5,0 15,0 26,0 12 9,00 25
25 3 6 - 25 • SR256 6,5 6,2 14,0 30,0 15 15,60 25
8 - 25 • SR258 8,5 6,2 16,0 32,0 15 17,00 25
35 2 6 - 35 • SR356 6,5 7,0 14,0 30,0 15 12,00 25
8 - 35 • SR358 8,5 7,0 16,0 32,0 15 13,10 25
10 - 35 • SR3510 10,5 7,0 18,0 34,0 15 15,70 25
50 1/0 6 - 50 • SR506 6,5 8,5 17,0 32,0 17 18,50 25
8 - 50 • SR508 8,5 8,5 17,0 34,0 17 20,00 25
10 - 50 • SR5010 10,5 8,5 19,0 37,0 17 31,30 25
Stoßverbinder
für Massivleiter (re)
Sonderausführung
Werkstoff: CU Rohr nach EN 13600
Oberfläche: galvanisch verzinnt d 1
Butt-connectors for d 2
solid conductors (re)
special type l
material: CU tube acc. to EN 13600
surface: tin-plated
Abmessung (mm)
Nenngröße Artikel-Nummer
mm 2 AWG nominal size art-number dimensions ~ Kg
d l d s 1000 St. VE
1 2
1,5 - 2,5 13 2,5 • SV1525 1,9 25 3,9 1,0 2,10 100
4 11 4 • SV4 2,4 25 4,4 1,0 2,40 100
6 10 6 • SV6 3,0 25 5,0 1,0 2,75 100
10 7 10 • SV10 4,0 25 6,0 1,0 3,50 100
16 5 16 • SV16 5,0 35 8,0 1,5 9,60 100
25 3 25 • SV25 6,2 40 10,0 1,9 17,00 50
35 2 35 • SV35 7,0 40 10,0 1,5 14,20 50
50 1/0 50 • SV50 8,0 70 12,0 2,0 35,50 50
© KRYSTUFEK GmbH & Co KG office@krystufek.at +43 - 1 - 616 40 10 4.19
