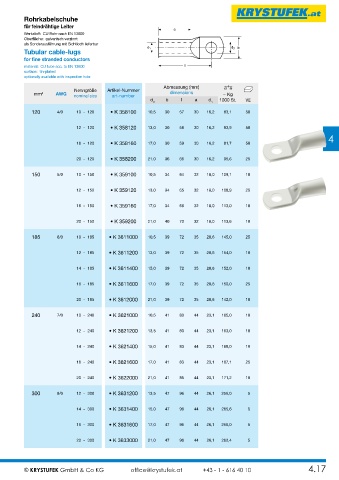

Page 57 - Krystufek_Gesamt-Katalog
P. 57
Rohrkabelschuhe
für feindrähtige Leiter
a
Werkstoff: CU Rohr nach EN 13600
Oberfläche: galvanisch verzinnt
als Sonderausführung mit Sichtloch lieferbar d 1 d 3 b
Tubular cable-lugs
for fine stranded conductors
material: CU tube acc. to EN 13600 l
surface: tin-plated
optionally available with inspection hole
Abmessung (mm)
Nenngröße Artikel-Nummer
mm 2 AWG nominal size art-number dimensions ~ Kg
d 3 b l a d 1 1000 St. VE
120 4/0 10 - 120 • K 358100 10,5 30 57 30 16,2 83,1 50
12 - 120 • K 358120 13,0 30 58 30 16,2 83,9 50
4
16 - 120 • K 358160 17,0 30 59 30 16,2 81,7 50
20 - 120 • K 358200 21,0 36 66 30 16,2 95,6 25
150 5/0 10 - 150 • K 359100 10,5 34 64 32 18,0 109,1 10
12 - 150 • K 359120 13,0 34 65 32 18,0 108,9 25
16 - 150 • K 359160 17,0 34 68 32 18,0 113,0 10
20 - 150 • K 359200 21,0 40 70 32 18,0 113,6 10
185 6/0 10 - 185 • K 3611000 10,5 39 72 35 20,6 145,0 25
12 - 185 • K 3611200 13,0 39 72 35 20,6 154,0 10
14 - 185 • K 3611400 15,0 39 72 35 20,6 152,0 10
16 - 185 • K 3611600 17,0 39 72 35 20,6 150,0 25
20 - 185 • K 3612000 21,0 39 72 35 20,6 142,0 10
240 7/0 10 - 240 • K 3621000 10,5 41 80 44 23,1 165,0 10
12 - 240 • K 3621200 13,5 41 80 44 23,1 163,0 10
14 - 240 • K 3621400 15,0 41 83 44 23,1 168,0 10
16 - 240 • K 3621600 17,0 41 83 44 23,1 167,1 25
20 - 240 • K 3622000 21,0 41 85 44 23,1 171,2 10
300 8/0 12 - 300 • K 3631200 13,5 47 96 44 26,1 256,0 5
14 - 300 • K 3631400 15,0 47 96 44 26,1 265,6 5
16 - 300 • K 3631600 17,0 47 96 44 26,1 256,0 5
20 - 300 • K 3633000 21,0 47 96 44 26,1 262,4 5
