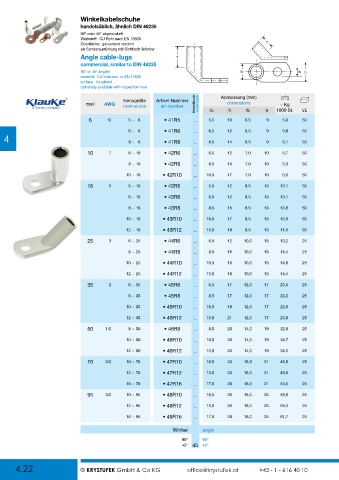

P. 62
Winkelkabelschuhe
handelsüblich, ähnlich DIN 46235
90° oder 45° abgewinkelt
Werkstoff: CU Rohr nach EN 13600
Oberfläche: galvanisch verzinnt a
als Sonderausführung mit Sichtloch lieferbar
Angle cable-lugs a
commercial, similar to DIN 46235
90° or 45° angled d 2 d 3 b
material: CU tube acc. to EN 13600
surface: tin-plated
optionally available with inspection hole
Nenngröße Artikel-Nummer Abmessung (mm)
mm 2 AWG nominal size art-number Bestellcode order code d3 dimensions a 1000 St. VE
~ Kg
b
d2
6 10 5 - 6 • 41R5 .. 5,5 10 6,5 9 5,9 50
6 - 6 • 41R6 .. 6,5 12 6,5 9 5,8 50
4 8 - 6 • 41R8 .. 8,5 14 6,5 9 6,1 50
10 7 6 - 10 • 42R6 .. 6,5 12 7,0 10 5,7 50
8 - 10 • 42R8 .. 8,5 15 7,0 10 6,3 50
10 - 10 • 42R10 .. 10,5 17 7,0 10 6,6 50
16 5 5 - 16 • 43R5 .. 5,5 12 8,5 13 10,1 50
6 - 16 • 43R6 .. 6,5 12 8,5 13 10,1 50
8 - 16 • 43R8 .. 8,5 15 8,5 13 10,8 50
10 - 16 • 43R10 .. 10,5 17 8,5 13 10,9 50
12 - 16 • 43R12 .. 13,0 19 8,5 13 11,5 50
25 3 6 - 25 • 44R6 .. 6,5 12 10,0 15 13,2 25
8 - 25 • 44R8 .. 8,5 16 10,0 15 14,4 25
10 - 25 • 44R10 .. 10,5 18 10,0 15 14,9 25
12 - 25 • 44R12 .. 13,0 19 10,0 15 14,4 25
35 2 6 - 35 • 45R6 .. 6,5 17 12,0 17 20,5 25
8 - 35 • 45R8 .. 8,5 17 12,0 17 22,0 25
10 - 35 • 45R10 .. 10,5 19 12,0 17 22,8 25
12 - 35 • 45R12 .. 13,0 21 12,0 17 23,8 25
50 1/0 8 - 50 • 46R8 .. 8,5 20 14,0 19 32,8 25
10 - 50 • 46R10 .. 10,5 20 14,0 19 34,7 25
12 - 50 • 46R12 .. 13,0 23 14,0 19 34,2 25
70 2/0 10 - 70 • 47R10 .. 10,5 23 16,5 21 48,8 25
12 - 70 • 47R12 .. 13,0 23 16,5 21 49,9 25
16 - 70 • 47R16 .. 17,0 28 16,5 21 53,5 25
95 3/0 10 - 95 • 48R10 .. 10,5 26 18,0 25 58,8 25
12 - 95 • 48R12 .. 13,0 26 18,0 25 59,3 25
16 - 95 • 48R16 .. 17,0 28 18,0 25 61,7 25
Winkel angle
90° 90°
45° 45 45°
4.22 © KRYSTUFEK GmbH & Co KG office@krystufek.at +43 - 1 - 616 40 10
