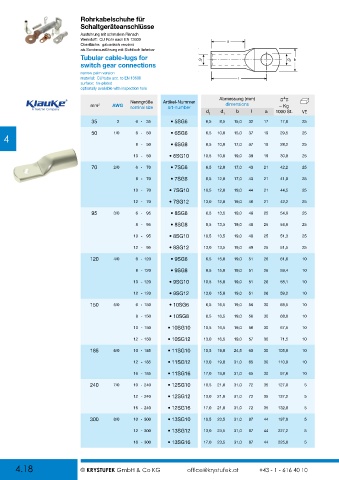

Rohrkabelschuhe für
Schaltgeräteanschlüsse
Ausführung mit schmalem Flansch
Werkstoff: CU Rohr nach EN 13600 a
Oberfläche: galvanisch verzinnt
als Sonderausführung mit Sichtloch lieferbar
Tubular cable-lugs for d 1 d 3 b
switch gear connections
narrow palm version
material: CU tube acc. to EN 13600 l
surface: tin-plated
optionally available with inspection hole
Abmessung (mm)
Nenngröße Artikel-Nummer
mm 2 AWG nominal size art-number dimensions ~ Kg
d d b l a 1000 St. VE
3 1
35 2 6 - 35 • 5SG6 6,5 8,5 15,0 32 17 17,8 25
4 50 1/0 6 - 50 • 6SG6 6,5 10,0 15,0 37 19 29,5 25
8 - 50 • 6SG8 8,5 10,0 17,0 37 19 28,2 25
10 - 50 • 6SG10 10,5 10,0 19,0 39 19 30,8 25
70 2/0 6 - 70 • 7SG6 6,5 12,0 17,0 43 21 42,2 25
8 - 70 • 7SG8 8,5 12,0 17,0 43 21 41,0 25
10 - 70 • 7SG10 10,5 12,0 19,0 44 21 44,5 25
12 - 70 • 7SG12 13,0 12,0 19,0 46 21 42,2 25
95 3/0 6 - 95 • 8SG6 6,5 13,5 19,0 48 25 54,9 25
8 - 95 • 8SG8 8,5 13,5 19,0 48 25 54,6 25
10 - 95 • 8SG10 10,5 13,5 19,0 48 25 51,3 25
12 - 95 • 8SG12 13,0 13,5 19,0 49 25 51,5 25
120 4/0 6 - 120 • 9SG6 6,5 15,0 19,0 51 26 61,6 10
8 - 120 • 9SG8 8,5 15,0 19,0 51 26 59,4 10
10 - 120 • 9SG10 10,5 15,0 19,0 51 26 58,1 10
12 - 120 • 9SG12 13,0 15,0 19,0 51 26 59,2 10
150 5/0 6 - 150 • 10SG6 6,5 16,5 19,0 56 30 68,5 10
8 - 150 • 10SG8 8,5 16,5 19,0 56 30 68,0 10
10 - 150 • 10SG10 10,5 16,5 19,0 56 30 67,5 10
12 - 150 • 10SG12 13,0 16,5 19,0 57 30 71,5 10
185 6/0 10 - 185 • 11SG10 10,5 19,0 24,5 65 30 105,9 10
12 - 185 • 11SG12 13,0 19,0 31,0 65 30 110,9 10
16 - 185 • 11SG16 17,0 19,0 31,0 65 30 97,6 10
240 7/0 10 - 240 • 12SG10 10,5 21,0 31,0 72 35 127,0 5
12 - 240 • 12SG12 13,0 21,0 31,0 72 35 137,2 5
16 - 240 • 12SG16 17,0 21,0 31,0 72 35 132,8 5
300 8/0 10 - 300 • 13SG10 10,5 23,5 31,0 87 44 197,0 5
12 - 300 • 13SG12 13,0 23,5 31,0 87 44 227,2 5
16 - 300 • 13SG16 17,0 23,5 31,0 87 44 225,0 5
