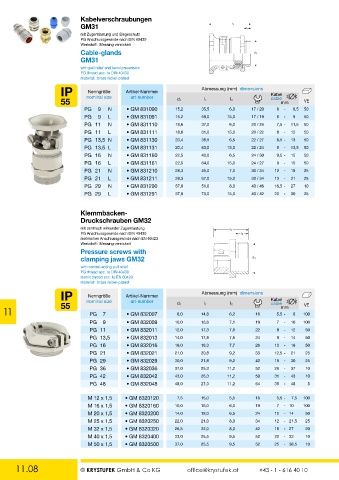

P. 150
Kabelverschraubungen
GM31 l 1 l 2
mit Zugentlastung und Biegeschutz
PG Anschlussgewinde nach DIN 40430
Werkstoff: Messing vernickelt
Cable-glands d 1
GM31
with pull relief and bend prevension
PG thread acc. to DIN 40430
material: brass nickel-plated
IP Nenngröße Artikel-Nummer Abmessung (mm) dimensions Kabel
55 nominal size art-number d1 l1 l2 cable mm VE
PG 9 N • GM 831090 15,2 35,5 6,0 17 / 20 6 - 8,5 50
PG 9 L • GM 831091 15,2 59,0 15,0 17 / 19 6 - 9 50
PG 11 N • GM 831110 18,6 37,0 6,0 20 / 24 7,5 - 11,5 50
PG 11 L • GM 831111 18,6 61,0 15,0 20 / 22 8 - 12 50
PG 13,5 N • GM 831130 20,4 38,5 6,5 22 / 27 8,5 - 13 50
PG 13,5 L • GM 831131 20,4 63,0 15,0 22 / 24 8 - 13,5 50
PG 16 N • GM 831160 22,5 40,0 6,5 24 / 30 9,5 - 15 50
PG 16 L • GM 831161 22,5 64,0 15,0 24 / 27 9 - 15 50
PG 21 N • GM 831210 28,3 45,0 7,0 30 / 34 12 - 19 25
PG 21 L • GM 831211 28,3 67,0 15,0 30 / 34 13 - 21 25
PG 29 N • GM 831290 37,0 51,0 8,0 40 / 46 16,5 - 27 10
PG 29 L • GM 831291 37,0 73,0 15,0 40 / 42 20 - 30 25
Klemmbacken-
Druckschrauben GM32
mit zentrisch wirkender Zugentlastung l 1
PG Anschlussgewinde nach DIN 40430 l 2
metrisches Anschlussgewinde nach EN 60423
Werkstoff: Messing vernickelt
Pressure screws with
clamping jaws GM32 d 1
with central-acting pull relief
PG thread acc. to DIN 40430
metric thread acc. to EN 60423
material: brass nickel-plated
IP nominal size Artikel-Nummer Abmessung (mm) dimensions Kabel
Nenngröße
art-number
VE
l2
l1
11 55 PG 7 • GM 832007 d1 14,8 6,2 16 cable mm 8 100
8,0
5,5 -
PG 9 • GM 832009 10,0 16,6 7,1 19 7 - 10 100
PG 11 • GM 832011 12,0 17,3 7,6 22 8 - 12 50
PG 13,5 • GM 832013 14,0 17,8 7,6 24 9 - 14 50
PG 16 • GM 832016 16,0 18,3 7,7 26 10 - 16 50
PG 21 • GM 832021 21,0 20,8 9,2 33 12,5 - 21 25
PG 29 • GM 832029 30,0 21,8 9,2 42 19 - 30 25
PG 36 • GM 832036 37,0 25,3 11,2 52 26 - 37 10
PG 42 • GM 832042 43,0 26,3 11,2 59 31 - 43 10
PG 48 • GM 832048 48,0 27,3 11,2 64 35 - 48 5
M 12 x 1,5 • GM 8320120 7,5 15,0 5,5 16 5,5 - 7,5 100
M 16 x 1,5 • GM 8320160 10,0 16,0 6,0 19 7 - 10 100
M 20 x 1,5 • GM 8320200 14,0 18,0 6,5 24 10 - 14 50
M 25 x 1,5 • GM 8320250 22,0 21,0 8,0 34 12 - 21,5 25
M 32 x 1,5 • GM 8320320 26,5 22,0 8,0 42 16 - 27 20
M 40 x 1,5 • GM 8320400 33,0 25,5 9,5 52 22 - 33 10
M 50 x 1,5 • GM 8320500 37,0 25,5 9,5 52 25 - 38,5 10
11.08 © KRYSTUFEK GmbH & Co KG office@krystufek.at +43 - 1 - 616 40 10
