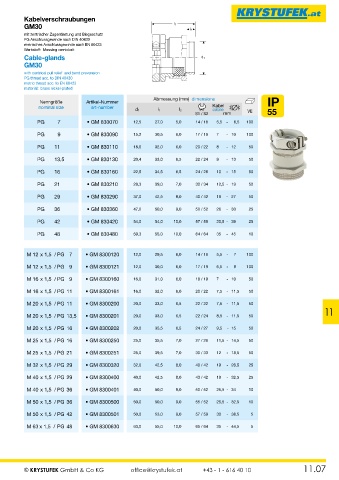

Page 149 - Krystufek_Gesamt-Katalog
P. 149
Kabelverschraubungen
GM30 l 1 l 2
mit zentrischer Zugentlastung und Biegeschutz
PG Anschlussgewinde nach DIN 40430
metrisches Anschlussgewinde nach EN 60423
Werkstoff: Messing vernickelt
Cable-glands d 1
GM30
with centrical pull relief and bend prevension
PG thread acc. to DIN 40430
metric thread acc. to EN 60423
material: brass nickel-plated
Abmessung (mm) dimensions
Nenngröße Artikel-Nummer IP
nominal size art-number Kabel
d1 l1 l2 cable VE 55
S1 / S2 mm
PG 7 • GM 830070 12,5 27,0 5,0 14 / 16 5,5 - 6,5 100
PG 9 • GM 830090 15,2 30,5 6,0 17 / 19 7 - 10 100
PG 11 • GM 830110 18,6 32,0 6,0 20 / 22 8 - 12 50
PG 13,5 • GM 830130 20,4 33,0 6,5 22 / 24 9 - 13 50
PG 16 • GM 830160 22,5 34,5 6,5 24 / 26 10 - 15 50
PG 21 • GM 830210 28,3 39,0 7,0 30 / 34 12,5 - 19 50
PG 29 • GM 830290 37,0 42,5 8,0 40 / 42 19 - 27 50
PG 36 • GM 830360 47,0 50,0 9,0 50 / 52 26 - 33 25
PG 42 • GM 830420 54,0 54,0 10,0 57 / 59 30,5 - 39 25
PG 48 • GM 830480 59,3 55,0 10,0 64 / 64 35 - 45 10
M 12 x 1,5 / PG 7 • GM 8300120 12,0 29,5 6,0 14 / 16 5,5 - 7 100
M 12 x 1,5 / PG 9 • GM 8300121 12,0 30,0 6,0 17 / 19 6,5 - 8 100
M 16 x 1,5 / PG 9 • GM 8300160 16,0 31,0 6,0 18 / 19 7 - 10 50
M 16 x 1,5 / PG 11 • GM 8300161 16,0 32,0 6,0 20 / 22 7,5 - 11,5 50
M 20 x 1,5 / PG 11 • GM 8300200 20,0 33,0 6,5 22 / 22 7,5 - 11,5 50
11
M 20 x 1,5 / PG 13,5 • GM 8300201 20,0 33,0 6,5 22 / 24 8,5 - 11,5 50
M 20 x 1,5 / PG 16 • GM 8300202 20,0 35,5 6,5 24 / 27 9,5 - 15 50
M 25 x 1,5 / PG 16 • GM 8300250 25,0 35,5 7,0 27 / 26 11,5 - 14,5 50
M 25 x 1,5 / PG 21 • GM 8300251 25,0 39,5 7,0 30 / 33 12 - 18,5 50
M 32 x 1,5 / PG 29 • GM 8300320 32,0 42,5 8,0 40 / 42 19 - 26,5 25
M 40 x 1,5 / PG 29 • GM 8300400 40,0 42,5 8,0 43 / 42 19 - 32,5 25
M 40 x 1,5 / PG 36 • GM 8300401 40,0 50,0 8,0 50 / 52 25,5 - 34 10
M 50 x 1,5 / PG 36 • GM 8300500 50,0 50,0 9,0 55 / 52 26,5 - 32,5 10
M 50 x 1,5 / PG 42 • GM 8300501 50,0 53,0 9,0 57 / 59 30 - 38,5 5
M 63 x 1,5 / PG 48 • GM 8300630 63,0 55,0 10,0 65 / 64 35 - 44,5 5
