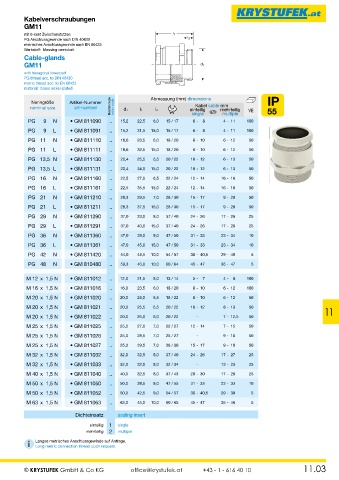

P. 145
Kabelverschraubungen
GM11
mit 6-kant Zwischenstutzen l 1
PG Anschlussgewinde nach DIN 40430 l 2
metrisches Anschlussgewinde nach EN 60423
Werkstoff: Messing vernickelt
Cable-glands
GM11 d 1
with hexagonal lowerpart
PG thread acc. to DIN 40430
metric thread acc. to EN 60423
material: brass nickel-plated
Nenngröße Artikel-Nummer Abmessung (mm) dimensions IP
Kabel cable mm
nominal size art-number Bestellcode order code d1 l1 l2 einteilig mehrteilig VE 55
single
multiple
PG 9 N • GM 811090 .. 15,2 22,5 6,0 15 / 17 6 - 8 4 - 11 100
PG 9 L • GM 811091 .. 15,2 31,5 15,0 15 / 17 6 - 8 4 - 11 100
PG 11 N • GM 811110 .. 18,6 23,5 6,0 18 / 20 8 - 10 6 - 12 50
PG 11 L • GM 811111 .. 18,6 32,5 15,0 18 / 20 8 - 10 6 - 12 50
PG 13,5 N • GM 811130 .. 20,4 25,5 6,5 20 / 22 10 - 12 6 - 13 50
PG 13,5 L • GM 811131 .. 20,4 34,0 15,0 20 / 22 10 - 12 6 - 13 50
PG 16 N • GM 811160 .. 22,5 27,0 6,5 22 / 24 12 - 14 16 - 16 50
PG 16 L • GM 811161 .. 22,5 35,5 15,0 22 / 24 12 - 14 16 - 16 50
PG 21 N • GM 811210 .. 28,3 29,5 7,0 28 / 30 15 - 17 9 - 20 50
PG 21 L • GM 811211 .. 28,3 37,5 15,0 28 / 30 15 - 17 9 - 20 50
PG 29 N • GM 811290 .. 37,0 33,0 8,0 37 / 40 24 - 26 17 - 28 25
PG 29 L • GM 811291 .. 37,0 40,0 15,0 37 / 40 24 - 26 17 - 28 25
PG 36 N • GM 811360 .. 47,0 39,0 9,0 47 / 50 31 - 33 23 - 34 10
PG 36 L • GM 811361 .. 47,0 45,0 15,0 47 / 50 31 - 33 23 - 34 10
PG 42 N • GM 811420 .. 54,0 44,5 10,0 54 / 57 38 - 40,5 29 - 40 5
PG 48 N • GM 810480 .. 59,3 46,0 10,0 60 / 64 45 - 47 35 - 47 5
M 12 x 1,5 N • GM 811012 .. 12,0 21,5 6,0 13 / 14 5 - 7 4 - 8 100
M 16 x 1,5 N • GM 811016 .. 16,0 23,5 6,0 18 / 20 8 - 10 6 - 12 100
M 20 x 1,5 N • GM 811020 .. 20,0 24,0 6,5 18 / 22 8 - 10 6 - 12 50
M 20 x 1,5 N • GM 811021 .. 20,0 25,5 6,5 20 / 22 10 - 12 8 - 13 50 11
M 20 x 1,5 N • GM 811022 .. 20,0 25,0 6,0 20 / 22 - 7 - 12,5 50
M 25 x 1,5 N • GM 811025 .. 25,0 27,0 7,0 22 / 27 12 - 14 7 - 15 50
M 25 x 1,5 N • GM 811026 .. 25,0 28,5 7,0 25 / 27 - 9 - 18 50
M 25 x 1,5 N • GM 811027 .. 25,0 29,5 7,0 28 / 30 15 - 17 9 - 19 50
M 32 x 1,5 N • GM 811032 .. 32,0 32,5 8,0 37 / 40 24 - 26 17 - 27 25
M 32 x 1,5 N • GM 811033 .. 32,0 32,0 8,0 32 / 34 - 13 - 23 25
M 40 x 1,5 N • GM 811040 .. 40,0 32,5 8,0 37 / 43 28 - 30 17 - 28 25
M 50 x 1,5 N • GM 811050 .. 50,0 38,5 9,0 47 / 55 31 - 33 23 - 33 10
M 50 x 1,5 N • GM 811052 .. 50,0 42,5 9,0 54 / 57 38 - 40,5 29 - 39 5
M 63 x 1,5 N • GM 811063 .. 63,0 45,0 10,0 60 / 65 45 - 47 35 - 46 5
Dichteinsatz sealing insert
einteilig 1 single
mehrteilig 2 multiple
i Langes metrisches Anschlussgewinde auf Anfrage.
Long metric connection thread upon request.
