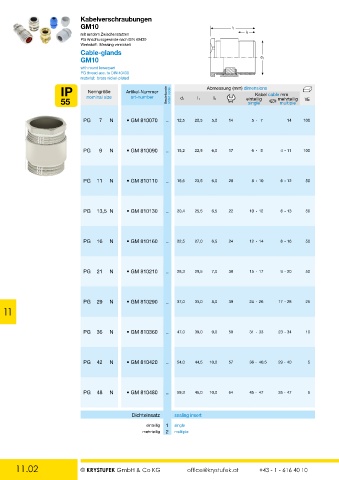

Page 144 - Krystufek_Gesamt-Katalog
P. 144
Kabelverschraubungen
GM10 l 1
l 2
mit rundem Zwischenstutzen
PG Anschlussgewinde nach DIN 40430
Werkstoff: Messing vernickelt
Cable-glands
GM10 d 1
with round lowerpart
PG thread acc. to DIN 40430
material: brass nickel-plated
IP Nenngröße Artikel-Nummer Bestellcode Abmessung (mm) dimensions
Kabel cable mm
55 nominal size art-number order code d1 l1 l2 einteilig mehrteilig VE
single
multiple
PG 7 N • GM 810070 .. 12,5 20,5 5,0 14 5 - 7 14 100
PG 9 N • GM 810090 .. 15,2 22,5 6,0 17 6 - 8 4 - 11 100
PG 11 N • GM 810110 .. 18,6 23,5 6,0 20 8 - 10 6 - 12 50
PG 13,5 N • GM 810130 .. 20,4 25,5 6,5 22 10 - 12 6 - 13 50
PG 16 N • GM 810160 .. 22,5 27,0 6,5 24 12 - 14 6 - 16 50
PG 21 N • GM 810210 .. 28,3 29,5 7,0 30 15 - 17 9 - 20 50
PG 29 N • GM 810290 .. 37,0 33,0 8,0 39 24 - 26 17 - 28 25
11
PG 36 N • GM 810360 .. 47,0 39,0 9,0 50 31 - 33 23 - 34 10
PG 42 N • GM 810420 .. 54,0 44,5 10,0 57 38 - 40,5 29 - 40 5
PG 48 N • GM 810480 .. 59,3 46,0 10,0 64 45 - 47 35 - 47 5
Dichteinsatz sealing insert
einteilig 1 single
mehrteilig 2 multiple
