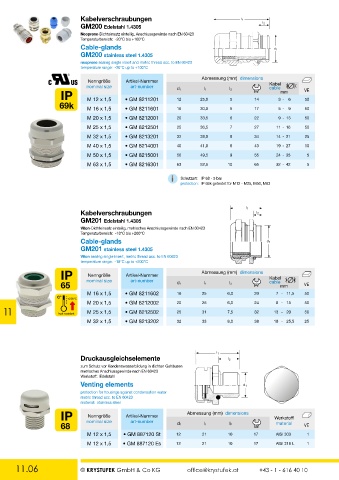

Kabelverschraubungen l 1
l 2
GM200 Edelstahl 1.4305
Neoprene-Dichteinsatz einteilig, Anschlussgewinde nach EN 60423
Temperaturbereich: -20°C bis +100°C
Cable-glands d 1
GM200 stainless steel 1.4305
neoprene sealing single insert and metric thread acc. to EN 60423
temperature range: -20°C up to +100°C
Abmessung (mm) dimensions
Nenngröße Artikel-Nummer
nominal size art-number d1 l1 l2 Kabel VE
cable
IP M 12 x 1,5 • GM 8211201 mm
69k M 16 x 1,5 • GM 8211601 12 25,0 5 5 14 3 - 6 9 50
5 -
16
17
50
30,0
M 20 x 1,5 • GM 8212001 20 33,5 6 22 9 - 13 50
M 25 x 1,5 • GM 8212501 25 36,5 7 27 11 - 16 50
M 32 x 1,5 • GM 8213201 32 38,0 8 34 14 - 21 25
M 40 x 1,5 • GM 8214001 40 41,0 8 43 19 - 27 10
M 50 x 1,5 • GM 8215001 50 49,5 9 55 24 - 35 5
M 63 x 1,5 • GM 8216301 63 52,5 10 65 32 - 42 5
i Schutzart: IP 68 - 5 bar
protection: IP 69k getestet für M12 - M25, M50, M63
l 1
Kabelverschraubungen l 2
GM201 Edelstahl 1.4305
Viton-Dichteinsatz einteilig, metrisches Anschlussgewinde nach EN 60423
Temperaturbereich: -18°C bis +200°C
Cable-glands d 1
GM201 stainless steel 1.4305
Viton sealing single insert, metric thread acc. to EN 60423
temperature range: -18°C up to +200°C
IP Nenngröße Artikel-Nummer Abmessung (mm) dimensions Kabel
65 nominal size art-number d1 l1 l2 cable mm VE
M 16 x 1,5 • GM 8211602 16 25 6,0 20 7 - 11,5 50
+200°C
M 20 x 1,5 • GM 8212002 20 26 6,0 24 8 - 15 50
11 heat resistant M 25 x 1,5 • GM 8212502 25 31 7,5 32 13 - 20 50
M 32 x 1,5 • GM 8213202 32 33 8,0 38 18 - 25,5 25
l 1
Druckausgleichselemente l 2
zum Schutz vor Kondenswasserbildung in dichten Gehäusen
metrisches Anschlussgewinde nach EN 60423
Werkstoff: Edelstahl
Venting elements d 1
protection for housings against condensation water
metric thread acc. to EN 60423
material: stainless steel
IP Nenngröße Artikel-Nummer Abmessung (mm) dimensions Werkstoff
68 nominal size art-number d1 l1 l2 material VE
M 12 x 1,5 • GM 887120 St 12 21 10 17 AISI 303 1
M 12 x 1,5 • GM 887120 Es 12 21 10 17 AISI 316 L 1
