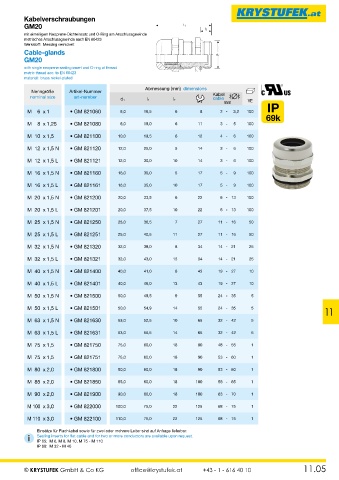

P. 147
Kabelverschraubungen
GM20 l 1 l 2
mit einteiligem Neoprene-Dichteinsatz und O-Ring am Anschlussgewinde
metrisches Anschlussgewinde nach EN 60423
Werkstoff: Messing vernickelt
Cable-glands d 1
GM20
with single neoprene sealing insert and O-ring at thread
metric thread acc. to EN 60423
material: brass nickel-plated
Abmessung (mm) dimensions
Nenngröße Artikel-Nummer
nominal size art-number Kabel
cable
d1 l1 l2 VE
mm IP
M 6 x 1 • GM 821060 6,0 16,5 6 8 2 - 3,2 100
69k
M 8 x 1,25 • GM 821080 8,0 19,0 6 11 3 - 5 100
M 10 x 1,5 • GM 821100 10,0 19,5 6 12 4 - 6 100
M 12 x 1,5 N • GM 821120 12,0 25,0 5 14 3 - 6 100
M 12 x 1,5 L • GM 821121 12,0 30,0 10 14 3 - 6 100
M 16 x 1,5 N • GM 821160 16,0 30,0 5 17 5 - 9 100
M 16 x 1,5 L • GM 821161 16,0 35,0 10 17 5 - 9 100
M 20 x 1,5 N • GM 821200 20,0 33,5 6 22 6 - 13 100
M 20 x 1,5 L • GM 821201 20,0 37,5 10 22 6 - 13 100
M 25 x 1,5 N • GM 821250 25,0 36,5 7 27 11 - 16 50
M 25 x 1,5 L • GM 821251 25,0 40,5 11 27 11 - 16 50
M 32 x 1,5 N • GM 821320 32,0 38,0 8 34 14 - 21 25
M 32 x 1,5 L • GM 821321 32,0 43,0 13 34 14 - 21 25
M 40 x 1,5 N • GM 821400 40,0 41,0 8 43 19 - 27 10
M 40 x 1,5 L • GM 821401 40,0 46,0 13 43 19 - 27 10
M 50 x 1,5 N • GM 821500 50,0 49,5 9 55 24 - 35 5
11
M 50 x 1,5 L • GM 821501 50,0 54,9 14 55 24 - 35 5
M 63 x 1,5 N • GM 821630 63,0 52,5 10 65 32 - 42 5
M 63 x 1,5 L • GM 821631 63,0 56,5 14 65 32 - 42 5
M 75 x 1,5 • GM 821750 75,0 60,0 18 90 48 - 55 1
M 75 x 1,5 • GM 821751 75,0 60,0 18 90 53 - 60 1
M 80 x 2,0 • GM 821800 80,0 60,0 18 90 53 - 60 1
M 85 x 2,0 • GM 821850 85,0 60,0 18 100 58 - 65 1
M 90 x 2,0 • GM 821900 90,0 60,0 18 100 63 - 70 1
M 100 x 3,0 • GM 822000 100,0 75,0 22 125 68 - 75 1
M 110 x 3,0 • GM 822100 110,0 75,0 22 125 68 - 75 1
Einsätze für Flachkabel sowie für zwei oder mehrere Leiter sind auf Anfrage lieferbar.
i Sealing inserts for flat cable and for two or more conductors are available upon request.
IP 65: M 6, M 8, M 10, M 75 - M 110
IP 68: M 32 - M 40
