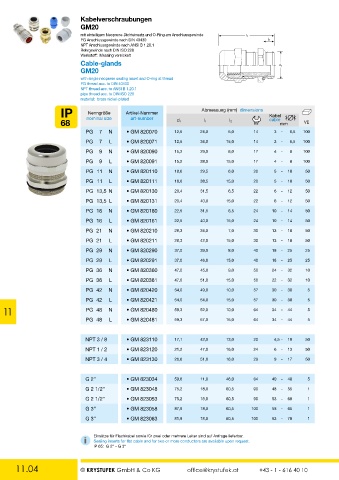

P. 146
Cable-glands
GM 20
with single neoprene sealing insert and O-ring at thread
PG thread acc. to DIN 40430
NPT thread acc. to ANSI B 1.20.1
pipe thread acc. to DIN ISO 228
material: brass nickel-plated
Kabelverschraubungen
GM20
mit einteiligem Neoprene-Dichteinsatz und O-Ring am Anschlussgewinde l 1
PG Anschlussgewinde nach DIN 40430 l 2
NPT Anschlussgewinde nach ANSI B 1.20.1
Rohrgewinde nach DIN ISO 228
Werkstoff: Messing vernickelt
Cable-glands d 1
GM20
with single neoprene sealing insert and O-ring at thread
PG thread acc. to DIN 40430
NPT thread acc. to ANSI B 1.20.1
pipe thread acc. to DIN ISO 228
material: brass nickel-plated
IP Nenngröße Artikel-Nummer Abmessung (mm) dimensions Kabel
68 nominal size art-number d1 l1 l2 cable mm VE
PG 7 N • GM 820070 12,5 24,0 5,0 14 3 - 6,5 100
PG 7 L • GM 820071 12,5 34,0 15,0 14 3 - 6,5 100
PG 9 N • GM 820090 15,2 29,0 6,0 17 4 - 8 100
PG 9 L • GM 820091 15,2 38,0 15,0 17 4 - 8 100
PG 11 N • GM 820110 18,6 29,5 6,0 20 5 - 10 50
PG 11 L • GM 820111 18,6 38,5 15,0 20 5 - 10 50
PG 13,5 N • GM 820130 20,4 31,5 6,5 22 6 - 12 50
PG 13,5 L • GM 820131 20,4 40,0 15,0 22 6 - 12 50
PG 16 N • GM 820160 22,5 31,5 6,5 24 10 - 14 50
PG 16 L • GM 820161 22,5 40,0 15,0 24 10 - 14 50
PG 21 N • GM 820210 28,3 34,0 7,0 30 13 - 18 50
PG 21 L • GM 820211 28,3 42,0 15,0 30 13 - 18 50
PG 29 N • GM 820290 37,0 39,0 8,0 40 18 - 25 25
PG 29 L • GM 820291 37,0 46,0 15,0 40 18 - 25 25
PG 36 N • GM 820360 47,0 45,0 9,0 50 24 - 32 10
PG 36 L • GM 820361 47,0 51,0 15,0 50 22 - 32 10
PG 42 N • GM 820420 54,0 49,0 10,0 57 30 - 38 5
PG 42 L • GM 820421 54,0 54,0 15,0 57 30 - 38 5
11 PG 48 N • GM 820480 59,3 52,0 10,0 64 34 - 44 5
PG 48 L • GM 820481 59,3 57,0 15,0 64 34 - 44 5
NPT 3 / 8 • GM 823110 17,1 42,0 13,0 20 4,5 - 10 50
NPT 1 / 2 • GM 823120 21,2 47,0 16,0 24 6 - 13 50
NPT 3 / 4 • GM 823130 26,6 51,0 16,0 29 9 - 17 50
G 2” • GM 823034 59,6 11,0 46,0 64 40 - 48 5
G 2 1/2” • GM 823048 75,2 18,0 60,5 90 48 - 55 1
G 2 1/2” • GM 823053 75,2 18,0 60,5 90 53 - 60 1
G 3” • GM 823058 87,9 18,0 60,5 100 58 - 65 1
G 3” • GM 823063 81,9 18,0 60,5 100 63 - 70 1
i Einsätze für Flachkabel sowie für zwei oder mehrere Leiter sind auf Anfrage lieferbar.
Sealing inserts for flat cable and for two or more conductors are available upon request.
IP 65: G 2“ - G 3“
11.04 © KRYSTUFEK GmbH & Co KG office@krystufek.at +43 - 1 - 616 40 10
