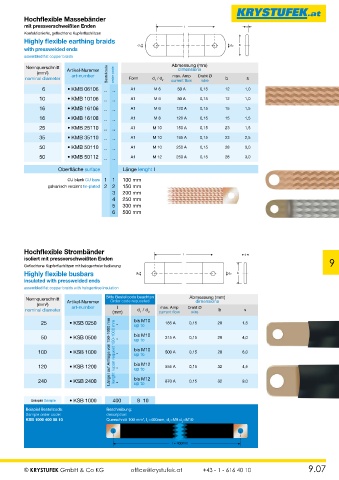

Page 139 - Krystufek_Gesamt-Katalog
P. 139
Hochflexible Massebänder
mit pressverschweißten Enden l s
Konfektionierte, geflochtene Kupferflachlitzen
Highly flexible earthing braids
d 1 d 2 b
with presswelded ends
assembled flat copper braids
Abmessung (mm)
Nennquerschnitt Artikel-Nummer dimensions
(mm²) Bestellcode order code
max. Amp
nominal diameter art-number Form d / d 2 current flow Draht Ø b s
wire
1
6 • KMB 06106 .. .. A1 M 6 50 A 0,15 12 1,0
10 • KMB 10106 .. .. A1 M 6 80 A 0,15 12 1,0
16 • KMB 16106 .. .. A1 M 6 120 A 0,15 15 1,5
16 • KMB 16108 .. .. A1 M 8 120 A 0,15 15 1,5
25 • KMB 25110 .. .. A1 M 10 150 A 0,15 23 1,5
35 • KMB 35110 .. .. A1 M 10 195 A 0,15 23 2,5
50 • KMB 50110 .. .. A1 M 10 250 A 0,15 28 3,0
50 • KMB 50112 .. .. A1 M 12 250 A 0,15 28 3,0
Oberfläche surface Länge lenght l
CU blank CU bare 1 1 100 mm
galvanisch verzinnt tin-plated 2 2 150 mm
3 200 mm
4 250 mm
5 300 mm
6 500 mm
Hochflexible Strombänder l s
isoliert mit pressverschweißten Enden
Geflochtene Kupferflachlitzen mit halogenfreier Isolierung 9
Highly flexible busbars d 1 d 2 b
insulated with presswelded ends
assembled flat copper braids with halogenfree insulation
Nennquerschnitt Artikel-Nummer Bitte Bestellcode beachten Abmessung (mm)
Order code requested
dimensions
(mm²)
l
max. Amp
nominal diameter art-number (mm) d / d 2 current flow Draht Ø b s
wire
1
Länge l auf Anfrage von 150-1000 mm bis M10
25 • KSB 0250 .. bis M10 185 A 0,15 20 1,5
up to
50 • KSB 0500 .. bis M10 315 A 0,15 20 4,0
up to
100 • KSB 1000 .. lenght l upon request 150-1000 mm .. up to 500 A 0,15 20 6,0
120 • KSB 1200 .. bis M12 555 A 0,15 32 4,5
up to
240 • KSB 2400 bis M12 870 A 0,15 32 9,0
up to
Beispiel Sample • KSB 1000 400 8 10
Beispiel Bestellcode: Beschreibung:
Sample order code: description:
KSB 1000 400 08 10 Querschnitt 100 mm², l =400mm, d =M8 d =M10
1 1 2
l = 400mm
© KRYSTUFEK GmbH & Co KG office@krystufek.at +43 - 1 - 616 40 10 9.07
