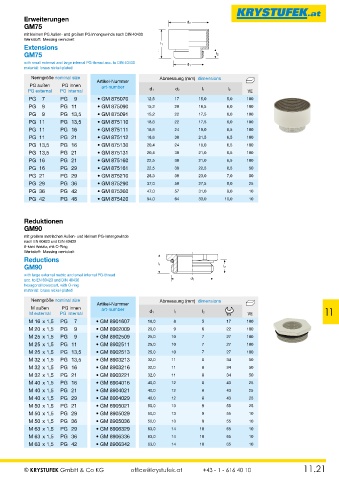

P. 163
Erweiterungen
GM75 d 2
mit kleinem PG Außen- und großem PG Innengewinde nach DIN 40430
Werkstoff: Messing vernickelt
Extensions l 1
GM75 l 2
with small external and large internal PG-thread acc. to DIN 40430 d 1
material: brass nickel-plated
Nenngröße nominal size Abmessung (mm) dimensions
Artikel-Nummer
PG außen PG innen art-number
PG external PG internal d1 d2 l1 l2 VE
PG 7 PG 9 • GM 875070 12,5 17 15,0 5,0 100
PG 9 PG 11 • GM 875090 15,2 20 16,5 6,0 100
PG 9 PG 13,5 • GM 875091 15,2 22 17,5 6,0 100
PG 11 PG 13,5 • GM 875110 18,6 22 17,5 6,0 100
PG 11 PG 16 • GM 875111 18,6 24 19,0 6,5 100
PG 11 PG 21 • GM 875112 18,6 30 21,5 6,5 100
PG 13,5 PG 16 • GM 875130 20,4 24 19,0 6,5 100
PG 13,5 PG 21 • GM 875131 20,4 30 21,0 6,5 100
PG 16 PG 21 • GM 875160 22,5 30 21,0 6,5 100
PG 16 PG 29 • GM 875161 22,5 39 22,5 6,5 50
PG 21 PG 29 • GM 875210 28,3 39 23,0 7,0 50
PG 29 PG 36 • GM 875290 37,0 50 27,5 8,0 25
PG 36 PG 42 • GM 875360 47,0 57 31,0 9,0 10
PG 42 PG 48 • GM 875420 54,0 64 33,0 10,0 10
Reduktionen
GM90
mit großem metrischen Außen- und kleinem PG-Innengewinde
nach EN 60423 und DIN 40430
6-kant Ansatz, mit O-Ring
Werkstoff: Messing vernickelt
Reductions
GM90 l 1 l 2
with large external metric and small internal PG-thread
acc. to EN 60423 and DIN 40430 d 1
hexagonal lowerpart, with O-ring
material: brass nickel-plated
Nenngröße nominal size Abmessung (mm) dimensions
Artikel-Nummer
M außen PG innen art-number
M external PG internal d1 l1 l2 VE 11
M 16 x 1,5 PG 7 • GM 8901607 16,0 8 5 17 100
M 20 x 1,5 PG 9 • GM 8902009 20,0 9 6 22 100
M 25 x 1,5 PG 9 • GM 8902509 25,0 10 7 27 100
M 25 x 1,5 PG 11 • GM 8902511 25,0 10 7 27 100
M 25 x 1,5 PG 13,5 • GM 8902513 25,0 10 7 27 100
M 32 x 1,5 PG 13,5 • GM 8903213 32,0 11 8 34 50
M 32 x 1,5 PG 16 • GM 8903216 32,0 11 8 34 50
M 32 x 1,5 PG 21 • GM 8903221 32,0 11 8 34 50
M 40 x 1,5 PG 16 • GM 8904016 40,0 12 8 43 25
M 40 x 1,5 PG 21 • GM 8904021 40,0 12 8 43 25
M 40 x 1,5 PG 29 • GM 8904029 40,0 12 8 43 25
M 50 x 1,5 PG 21 • GM 8905021 50,0 13 9 55 25
M 50 x 1,5 PG 29 • GM 8905029 50,0 13 9 55 10
M 50 x 1,5 PG 36 • GM 8905036 50,0 13 9 55 10
M 63 x 1,5 PG 29 • GM 8906329 63,0 14 10 65 10
M 63 x 1,5 PG 36 • GM 8906336 63,0 14 10 65 10
M 63 x 1,5 PG 42 • GM 8906342 63,0 14 10 65 10
© KRYSTUFEK GmbH & Co KG office@krystufek.at +43 - 1 - 616 40 10 11.21
