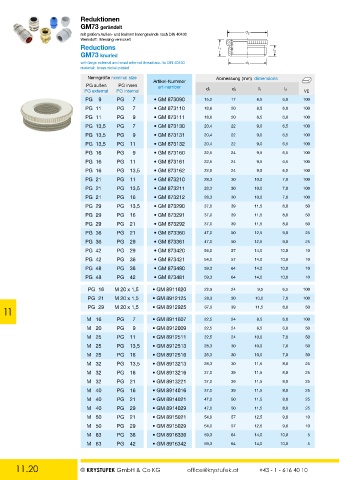

P. 162
Reduktionen
GM73 gerändelt
mit großem Außen- und kleinem Innengewinde nach DIN 40430 d 2
Werkstoff: Messing vernickelt
Reductions l 1
l 2
GM73 knurled
with large external and small internal thread acc. to DIN 40430 d 1
material: brass nickel-plated
Nenngröße nominal size Abmessung (mm) dimensions
Artikel-Nummer
PG außen PG innen art-number
PG external PG internal d1 d2 l1 l2 VE
PG 9 PG 7 • GM 873090 15,2 17 8,5 6,0 100
PG 11 PG 7 • GM 873110 18,6 20 8,5 6,0 100
PG 11 PG 9 • GM 873111 18,6 20 8,5 6,0 100
PG 13,5 PG 7 • GM 873130 20,4 22 9,0 6,5 100
PG 13,5 PG 9 • GM 873131 20,4 22 9,0 6,5 100
PG 13,5 PG 11 • GM 873132 20,4 22 9,0 6,5 100
PG 16 PG 9 • GM 873160 22,5 24 9,5 6,5 100
PG 16 PG 11 • GM 873161 22,5 24 9,5 6,5 100
PG 16 PG 13,5 • GM 873162 22,5 24 9,5 6,5 100
PG 21 PG 11 • GM 873210 28,3 30 10,0 7,0 100
PG 21 PG 13,5 • GM 873211 28,3 30 10,0 7,0 100
PG 21 PG 16 • GM 873212 28,3 30 10,0 7,0 100
PG 29 PG 13,5 • GM 873290 37,0 39 11,5 8,0 50
PG 29 PG 16 • GM 873291 37,0 39 11,5 8,0 50
PG 29 PG 21 • GM 873292 37,0 39 11,5 8,0 50
PG 36 PG 21 • GM 873360 47,0 50 12,5 9,0 25
PG 36 PG 29 • GM 873361 47,0 50 12,5 9,0 25
PG 42 PG 29 • GM 873420 54,0 57 14,0 10,0 10
PG 42 PG 36 • GM 873421 54,0 57 14,0 10,0 10
PG 48 PG 36 • GM 873480 59,3 64 14,0 10,0 10
PG 48 PG 42 • GM 873481 59,3 64 14,0 10,0 10
PG 16 M 20 x 1,5 • GM 8911620 22,5 24 9,5 6,5 100
PG 21 M 20 x 1,5 • GM 8912125 28,3 30 10,0 7,0 100
11 PG 29 M 20 x 1,5 • GM 8912925 37,0 39 11,5 8,0 50
M 16 PG 7 • GM 8911607 22,5 24 8,5 6,0 100
M 20 PG 9 • GM 8912009 22,5 24 8,5 6,0 50
M 25 PG 11 • GM 8912511 22,5 24 10,0 7,0 50
M 25 PG 13,5 • GM 8912513 28,3 30 10,0 7,0 50
M 25 PG 16 • GM 8912516 28,3 30 10,0 7,0 50
M 32 PG 13,5 • GM 8913213 28,3 30 11,5 8,0 25
M 32 PG 16 • GM 8913216 37,0 39 11,5 8,0 25
M 32 PG 21 • GM 8913221 37,0 39 11,5 8,0 25
M 40 PG 16 • GM 8914016 37,0 39 11,5 8,0 25
M 40 PG 21 • GM 8914021 47,0 50 11,5 8,0 25
M 40 PG 29 • GM 8914029 47,0 50 11,5 8,0 25
M 50 PG 21 • GM 8915021 54,0 57 12,5 9,0 10
M 50 PG 29 • GM 8915029 54,0 57 12,5 9,0 10
M 63 PG 36 • GM 8916336 59,3 64 14,0 10,0 5
M 63 PG 42 • GM 8916342 59,3 64 14,0 10,0 5
