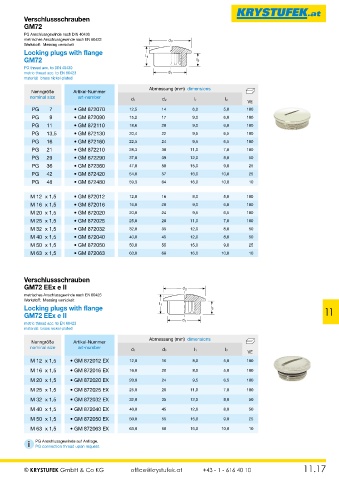

P. 159
Verschlussschrauben
GM72
PG Anschlussgewinde nach DIN 40430
metrisches Anschlussgewinde nach EN 60423 d 2
Werkstoff: Messing vernickelt
Locking plugs with flange
GM72 l 1 l 2
PG thread acc. to DIN 40430
metric thread acc. to EN 60423 d 1
material: brass nickel-plated
Abmessung (mm) dimensions
Nenngröße Artikel-Nummer
nominal size art-number
VE
d1 d2 l1 l2
PG 7 • GM 872070 12,5 14 6,0 5,0 100
PG 9 • GM 872090 15,2 17 9,0 6,0 100
PG 11 • GM 872110 18,6 20 9,0 6,0 100
PG 13,5 • GM 872130 20,4 22 9,5 6,5 100
PG 16 • GM 872160 22,5 24 9,5 6,5 100
PG 21 • GM 872210 28,3 30 11,0 7,0 100
PG 29 • GM 872290 37,0 39 12,0 8,0 50
PG 36 • GM 872360 47,0 50 15,0 9,0 25
PG 42 • GM 872420 54,0 57 16,0 10,0 25
PG 48 • GM 872480 59,3 64 16,0 10,0 10
M 12 x 1,5 • GM 872012 12,0 16 8,0 5,0 100
M 16 x 1,5 • GM 872016 16,0 20 9,0 6,0 100
M 20 x 1,5 • GM 872020 20,0 24 9,5 6,5 100
M 25 x 1,5 • GM 872025 25,0 28 11,0 7,0 100
M 32 x 1,5 • GM 872032 32,0 35 12,0 8,0 50
M 40 x 1,5 • GM 872040 40,0 45 12,0 8,0 50
M 50 x 1,5 • GM 872050 50,0 55 15,0 9,0 25
M 63 x 1,5 • GM 872063 63,0 68 16,0 10,0 10
Verschlussschrauben
GM72 EEx e II d 2
metrisches Anschlussgewinde nach EN 60423
Werkstoff: Messing vernickelt
Locking plugs with flange l 1 l 2 11
GM72 EEx e II
d 1
metric thread acc. to EN 60423
material: brass nickel-plated
Abmessung (mm) dimensions
Nenngröße Artikel-Nummer
nominal size art-number
d1 d2 l1 l2
VE
M 12 x 1,5 • GM 872012 EX 12,0 16 8,0 5,0 100
M 16 x 1,5 • GM 872016 EX 16,0 20 8,0 5,0 100
M 20 x 1,5 • GM 872020 EX 20,0 24 9,5 6,5 100
M 25 x 1,5 • GM 872025 EX 25,0 28 11,0 7,0 100
M 32 x 1,5 • GM 872032 EX 32,0 35 12,0 8,0 50
M 40 x 1,5 • GM 872040 EX 40,0 45 12,0 8,0 50
M 50 x 1,5 • GM 872050 EX 50,0 55 15,0 9,0 25
M 63 x 1,5 • GM 872063 EX 63,0 68 16,0 10,0 10
i PG Anschlussgewinde auf Anfrage.
PG connection thread upon request.
