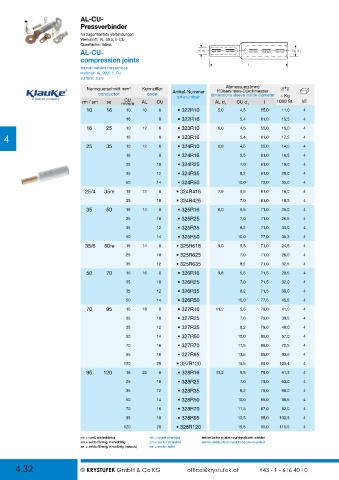

P. 72
AL-CU-
Press verbinder
für zugentlastete Verbindungen
Werkstoff: AL 99,5; E-CU
Oberfläche: blank
AL-CU- AL d 1 CU d 1
compression joints
l
for non-tension connections
material: AL 99,5; E-CU
surface: bare
Abmessung (mm)
2
Nennquerschnitt mm Kenn ziffer Hülseninnen-Durchmesser
conductor code Artikel-Nummer dimensions sleeve inside diameter ~ Kg
art-number
CU
rm / sm se rm/sm AL CU AL d 1 CU d 1 l 1000 St. VE
10 16 10 10 6 • 322R10 5,0 4,5 55,0 11,0 4
16 8 • 322R16 5,4 61,0 15,5 4
16 25 10 12 6 • 323R10 6,0 4,5 55,0 15,0 4
4 16 8 • 323R16 5,4 61,0 17,5 4
25 35 10 12 6 • 324R10 6,8 4,5 55,0 14,0 4
16 8 • 324R16 5,5 61,0 16,5 4
25 10 • 324R25 7,0 61,0 19,0 4
35 12 • 324R35 8,2 61,0 20,0 4
50 14 • 324R50 10,0 72,0 35,0 4
25/4 35re 16 12 8 • 324R416 7,6 5,5 61,0 16,0 4
25 10 • 324R425 7,0 61,0 18,5 4
35 50 16 14 8 • 325R16 8,0 5,5 71,0 25,0 4
25 10 • 325R25 7,0 71,0 26,5 4
35 12 • 325R35 8,2 71,0 33,0 4
50 14 • 325R50 10,0 77,0 35,3 4
35/6 50re 16 14 8 • 325R616 9,0 5,5 71,0 24,5 4
25 10 • 325R625 7,0 71,0 26,0 4
35 12 • 325R635 8,2 71,0 32,5 4
50 70 16 16 8 • 326R16 9,8 5,5 71,5 28,5 4
25 10 • 326R25 7,0 71,5 32,0 4
35 12 • 326R35 8,2 71,5 38,0 4
50 14 • 326R50 10,0 77,5 45,5 4
70 95 16 18 8 • 327R16 11,2 5,5 79,0 41,0 4
25 10 • 327R25 7,0 79,0 39,5 4
35 12 • 327R35 8,2 79,0 49,0 4
50 14 • 327R50 10,0 85,0 57,0 4
70 16 • 327R70 11,5 86,0 72,5 4
95 18 • 327R95 13,5 95,0 93,6 4
120 20 • 327R120 15,5 99,0 105,4 4
95 120 16 22 8 • 328R16 13,2 5,5 79,0 61,5 4
25 10 • 328R25 7,0 79,0 63,0 4
35 12 • 328R35 8,2 79,0 68,0 4
50 14 • 328R50 10,0 85,0 80,5 4
70 16 • 328R70 11,5 87,0 82,0 4
95 18 • 328R95 13,5 95,0 103,5 4
120 20 • 328R120 15,5 95,0 115,5 4
rm = rund, mehrdrähtig rm = round stranded sm/se Leiter müssen rundgedrückt werden
sm = sektorförmig, mehrdrätig sm = sector stranded sm/se conductors need to be pre-rounded
se = sektorförmig, eindrähtig (massiv) se = sector solid
